NasBoost CP5S Expansion Card | PCIe to SATA 3.0 x 5 Ports | JMB585 | 6Gbps | Plug & Play Storage Expansion
$ 25.60
🚚 Free Worldwide Shipping & Local Tax Included
Description

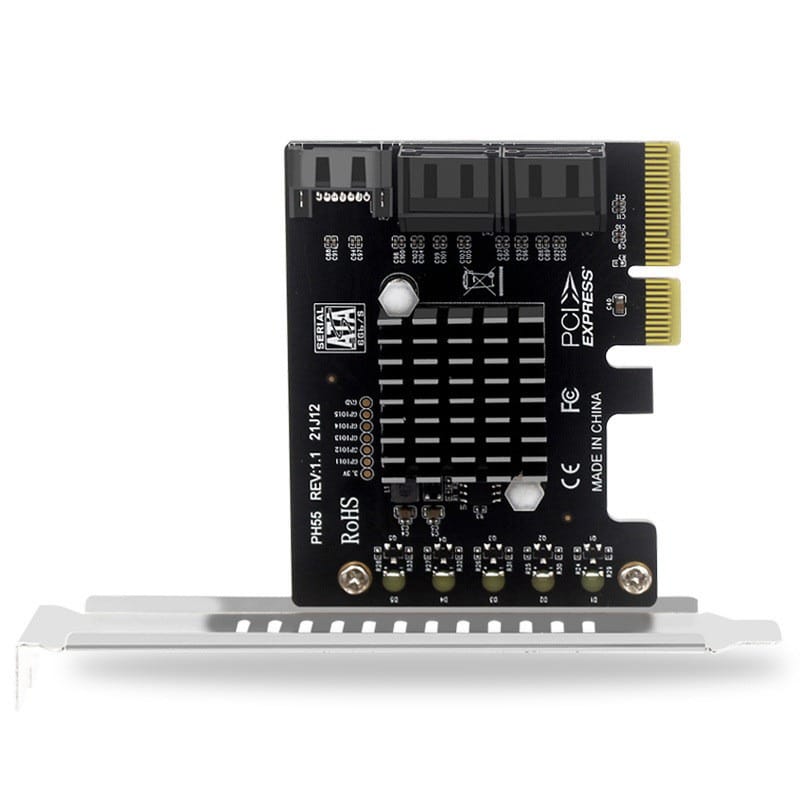

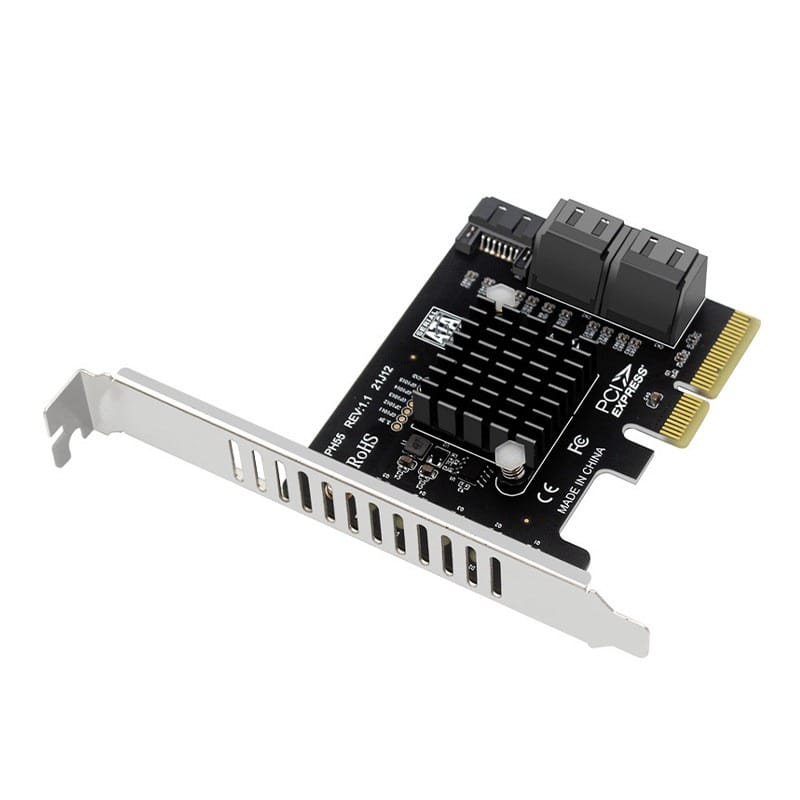

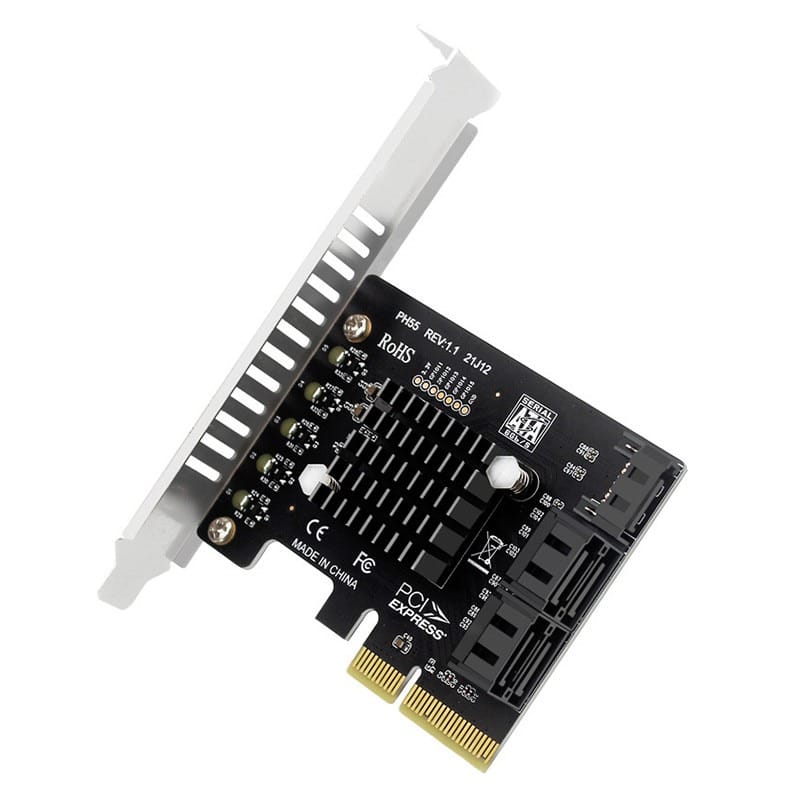

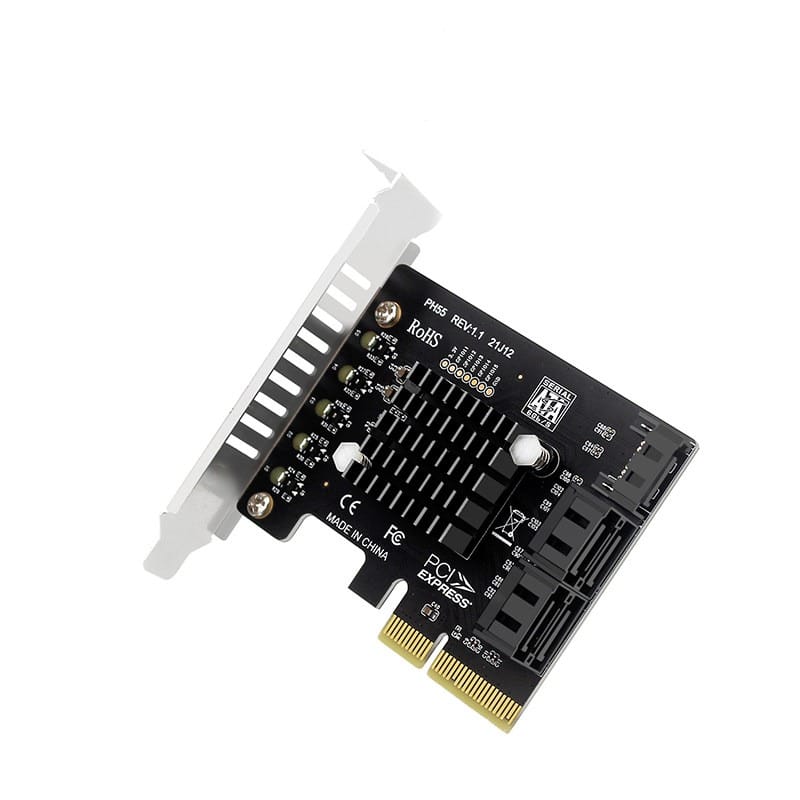

NasBoost CP5S PCIe to 5-Port SATA 3.0 Expansion Card | JMB585 Chipset | 6Gbps
Upgrade your workstation or server storage capacity with the NasBoost CP5S PCIe to SATA expansion card. Designed for high-density storage arrays, this card utilizes the flagship JMB585 controller to convert a single PCIe X4 slot into 5 independent 6Gbps SATA 3.0 ports. Whether you are building a professional NAS, a virtualized storage node, or a high-capacity file server, the CP5S ensures reliable, consistent data throughput.
Key Features
- Flagship JMB585 Controller: Industry-leading chipset delivers exceptional reliability and high-speed data transfer for 24/7 NAS operations.
- 5-Port High-Density Expansion: Efficiently add 5 SATA 3.0 ports via a single PCIe X4 slot, perfect for multi-HDD storage pools.
- PCIe X4 Interface: Fully compatible with PCIe X4, X8, and X16 slots, providing stable, direct-to-CPU lane bandwidth.
- Supports Multi-Mode RAID: Flexible software-defined storage support including AHCI, RAID 0, RAID 1, and SPAN (BIG) modes.
- Plug-and-Play Compatibility: Seamlessly works with Windows, Linux, and macOS without needing proprietary drivers.
Technical Specifications
| Model | NasBoost CP5S |
| Host Interface | PCIe X4 (Compatible with X8/X16) |
| Output | 5 x SATA 3.0 (6Gbps per port) |
| Chipset | JMB585 |
| Dimensions | 120mm x 80mm |
| OS Support | Windows, Linux, macOS |
⚠️ Compatibility & RAID Note
- PCIe Compatibility: This card is designed with a PCIe X4 interface and is fully compatible with standard PCIe X4, X8, and X16 slots on your motherboard.
- Software RAID: This card supports software-based RAID modes (RAID 0, 1, SPAN, AHCI) managed by the OS. It is an ideal, high-performance solution for NAS software pools like ZFS, Unraid, and TrueNAS.
Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Profile | Full Height, Low Profile |
