NasBoost M15-N Ryzen5 5625U NAS Motherboard | 6x SATA 3.0 | 2x NVMe | 4x 2.5G LAN
$ 298.98
🚚 Free Worldwide Shipping & Local Tax Included
Description
NasBoost M15-N Ryzen5 5625U NAS Motherboard | 6x SATA 3.0 | 2x NVMe | 4x 2.5G LAN
Build your dream home server, custom DIY NAS, or high-performance virtualization host with the NasBoost M15-N, a powerful Ryzen 5 5625U NAS Motherboard. Powered by the AMD Ryzen 5 5625U (Zen 3 architecture, 6 cores / 12 threads, up to 4.3GHz) on a compact 17x17cm Mini-ITX form factor, this motherboard delivers exceptional multi-tasking performance for demanding NAS, PVE, and ESXi workloads.
NasBoost M15-N Key Highlights
- Powerful Yet Efficient AMD Ryzen 5 5625U: Built on the advanced Zen 3 architecture with 6 cores and 12 threads, boosting up to 4.3GHz, with a low 15W TDP (configurable 10-25W). It handles heavy virtualization, transcoding, and multi-container workloads with ease while keeping power consumption remarkably low for 24/7 NAS operation.
- Massive Storage Potential: Purpose-built for high-density storage, the NasBoost M15-N features 6 x SATA 3.0 (6Gbps) ports and 2 x M.2 PCIe 3.0 NVMe slots (SSD1 x2 / SSD2 x4). Perfect for building high-capacity ZFS storage pools and fast SSD caching.
- Quad Intel i226-V 2.5G Networking: Equipped with 4 x Intel i226-V 2.5G Ethernet ports, providing stable, low-latency, and high-bandwidth connections for 4K PLEX streaming, soft-routing (OpenWrt/iStoreOS), and multi-node cluster setups.
- Dual-Channel DDR4 Memory: Two DDR4 SO-DIMM slots support 2133/2400/2666/3200MHz memory up to a maximum of 64GB, ensuring ample headroom for memory-hungry NAS OS and virtualization platforms.
- Smart Thermal Management: Supports temperature detection and intelligent fan control, with both automatic and manual CPU fan speed adjustment, plus two chassis 4-pin fan headers for flexible cooling configurations.
- Premium ITX Build Quality: Precision-engineered with a standard 17cm x 17cm Mini-ITX footprint, guaranteeing compatibility with most NAS cases. Supports standard DC-to-ATX, 1U, SFX, and ATX power supplies via 1 x 24pin + 1 x 4pin ATX input.

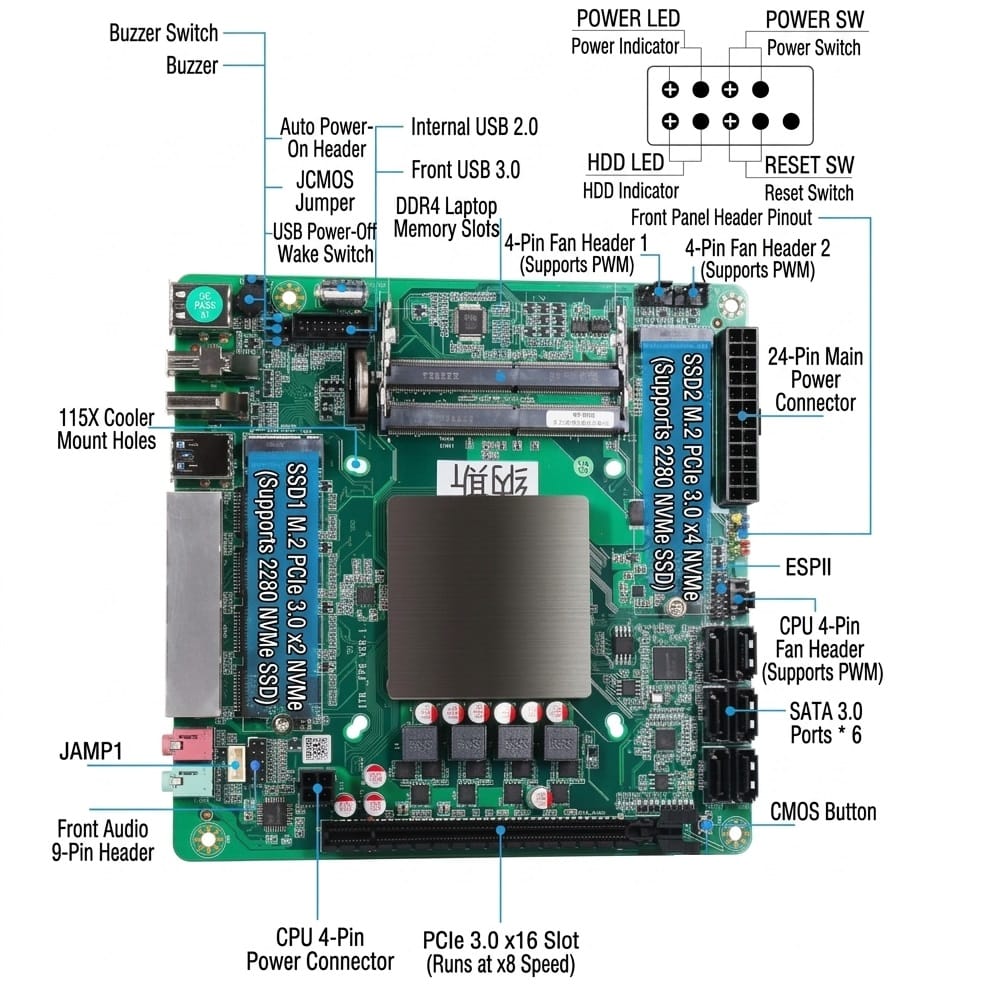

NasBoost M15-N Technical Specifications
| Feature | Specification |
|---|---|
| Processor | AMD Ryzen 5 5625U (6 Cores / 12 Threads, up to 4.3GHz Boost, 15W TDP) |
| Memory Support | Dual DDR4 SO-DIMM Slots (2133/2400/2666/3200MHz), up to 64GB |
| SATA Ports | 6 x SATA 3.0 (6Gbps) – Ideal for 6-Bay NAS Builds |
| NVMe Slots | 2 x M.2 PCIe 3.0 NVMe (SSD1 x2 / SSD2 x4) |
| Network Controller | 4 x Intel i226-V 2.5GbE LAN |
| Graphics | AMD Radeon Graphics, HDMI / DP Output |

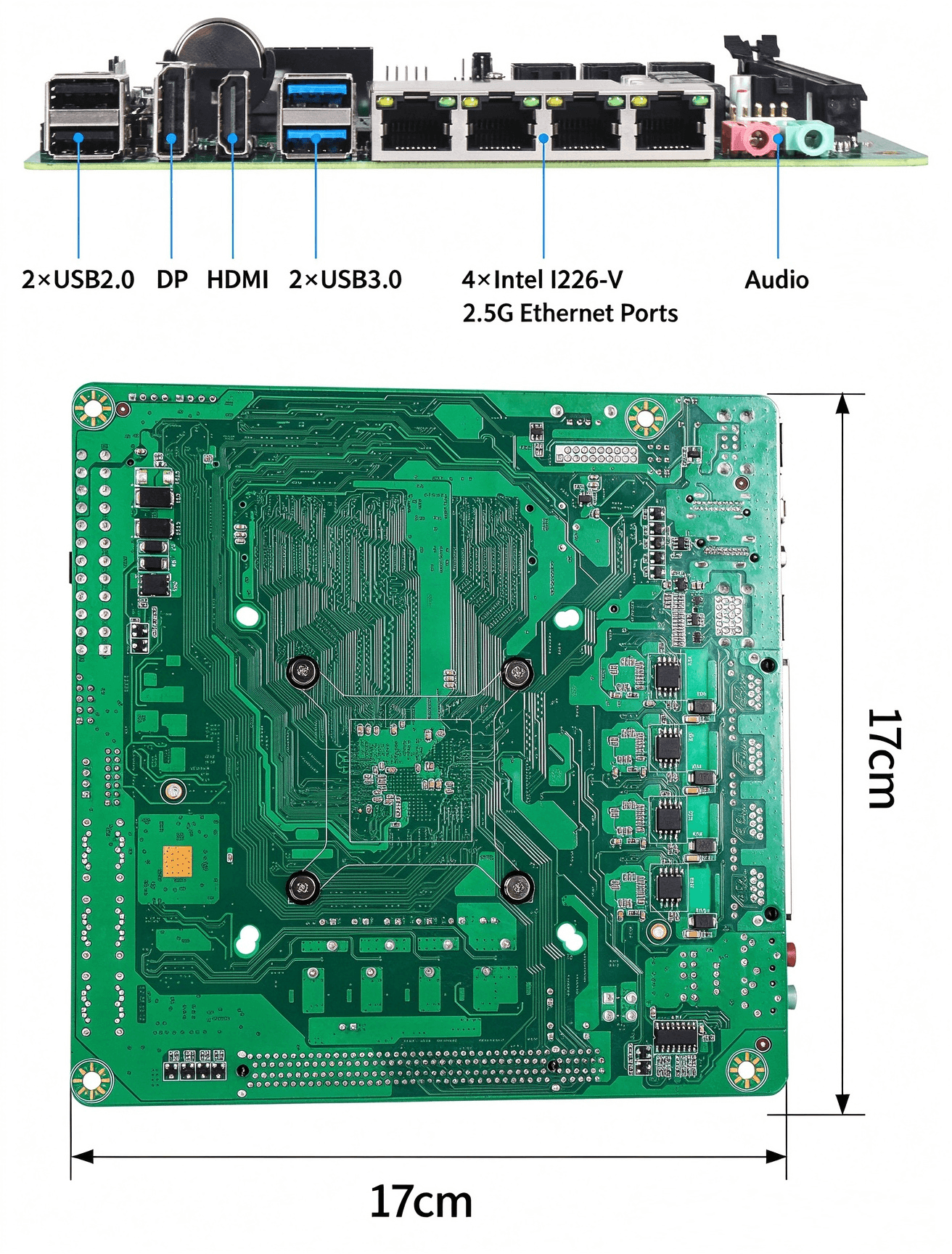

| Rear I/O | 2 x USB 2.0, 2 x USB 3.0, 1 x Self-test Port, 1 x Audio Jack |
| Form Factor | Mini-ITX (17cm x 17cm) |
| OS Compatibility | Windows 8/10/11; FnOS, Synology, PVE, Unix, Linux, ESXi, etc. |
Note: Motherboard and I/O shield only. CPU coolers, memory, and storage drives are sold separately. Explore more NASBOOST Hardware solutions built for high-performance Ryzen 5 5625U NAS Motherboard deployments.
Additional information
| Weight | 1 kg |
|---|---|
| Dimensions | 20 × 20 × 5 cm |
