NasBoost M14-T The Ultimate NAS AI Motherboard | Intel Ultra | 10GbE | Dual Thunderbolt 4 | 32GB LPDDR5X 8400MHz
Price range: $ 1,088.00 through $ 1,312.00
🚚 Free Worldwide Shipping & Local Tax Included
Description
NasBoost M14-T – The Ultimate NAS AI Motherboard | Intel Ultra | 10GbE | Dual Thunderbolt 4 | 32GB LPDDR5X 8400MHz
Empower your private cloud with the NasBoost M14-T. This flagship Mini-ITX motherboard is precision-engineered for the new era of localized AI computing and high-speed data architecture. Combining the elite Intel Ultra series with dual 10GbE networking, it offers the ultimate foundation for enthusiasts demanding extreme performance in a standard 17x17cm footprint.
NasBoost M14-T Key Highlights
- Revolutionary AI NPU: Harness dedicated AI silicon for local LLM inference, real-time object recognition, and smart surveillance workloads without taxing the CPU.
- Dual 10GbE High-Speed LAN: Features dual professional-grade 10G Ethernet ports, breaking the 2.5G bottleneck for lightning-fast file transfers and high-density all-flash storage access.
- Dual Thunderbolt 4 (40Gbps): Equipped with two full-speed Thunderbolt 4 ports, enabling massive bidirectional bandwidth for external expansion enclosures, high-speed peripherals, or daisy-chaining setups.
- Massive SATA Expansion (SFF-8087): Includes 3 x SFF-8087 connectors, supporting up to 12 x SATA 6Gb/s drives. Ideal for building high-capacity ZFS storage arrays in compact NAS chassis.
- High-Bandwidth PCIe 4.0 x8: Features an open-ended PCIe 4.0 x8 slot for additional HBA cards, high-speed NICs, or GPU acceleration to further customize your homelab.
- Integrated LPDDR5X 8400MHz: Built-in 32GB LPDDR5X ultra-high-frequency memory ensures peak stability and ultra-low latency for 24/7 server operations and AI model processing.

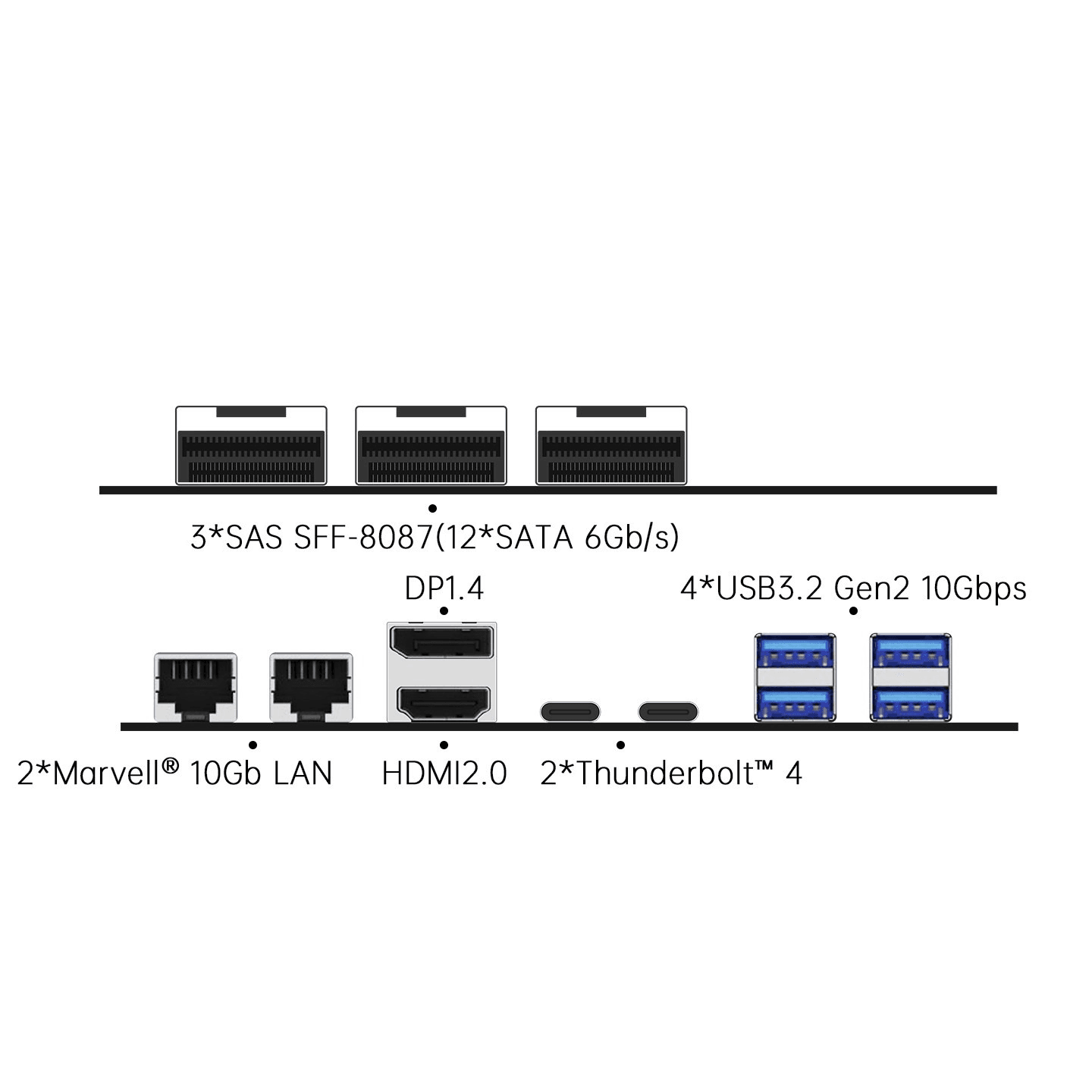

Detailed Layout & Interface Overview
A visual guide to the M14-T’s extensive I/O and on-board connections.

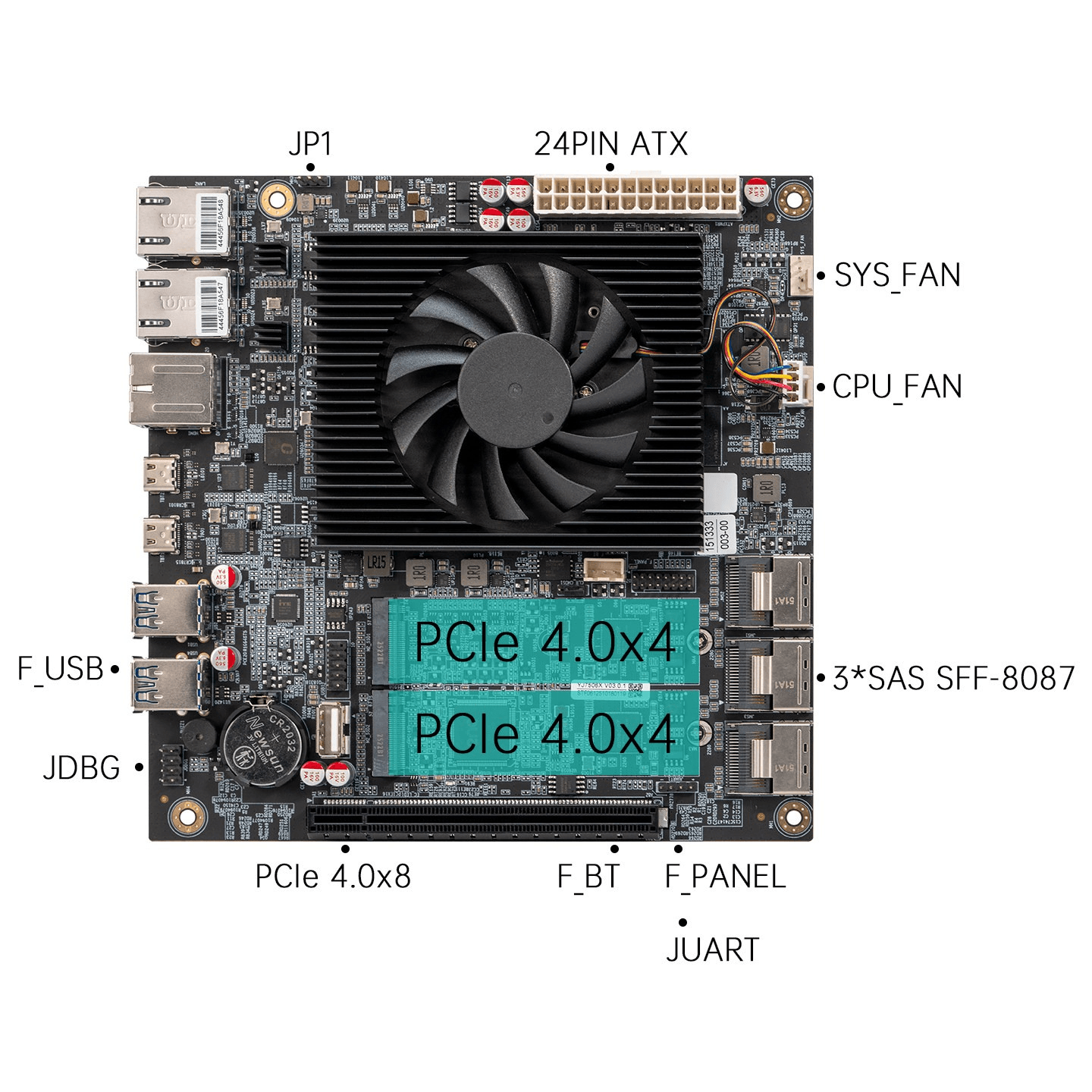

(Above: NasBoost M14-T layout with annotated interfaces)
Processor Comparison
| Feature | Ultra 5 225H | Ultra 7 255H | Ultra 9 285H |
|---|---|---|---|
| Core Architecture | 14 Cores (6P + 8E) | 16 Cores (6P + 10E) | 16 Cores (6P + 10E) |
| Max Turbo Freq. | 4.9 GHz | 5.1 GHz | 5.4 GHz |
| Smart Cache (L3) | 18 MB | 24 MB | 36 MB |
| GPU Graphics | 7 Xe-cores | 8 Xe-cores | 8 Xe-cores |
| Total AI Performance (CPU+GPU+NPU) | ~83 TOPS | ~96 TOPS | ~99 TOPS |
| Base TDP | 28W – 45W | 28W – 45W | 45W+ |
Technical Specifications
| Feature | Specification |
|---|---|
| Integrated Memory | 32GB LPDDR5X 8400MHz |
| Network Controller | Dual 10GbE LAN + Dual Thunderbolt 4 (40Gbps) |
| Storage Support | 3 x SFF-8087 (12 x SATA) + 2 x M.2 NVMe (PCIe 4.0 x4) |
| Expansion Slot | 1 x PCIe 4.0 x8 |
| Form Factor | Mini-ITX (17cm x 17cm) |
| OS Support | TrueNAS SCALE, Proxmox (AI Ready), unRAID, iStoreOS, Windows 11 |
Note: Bundle includes Motherboard with integrated Processor and RAM. Explore more NASBOOST Pro Components.
Additional information
| Weight | 1 kg |
|---|---|
| Dimensions | 20 × 20 × 8 cm |
| CPU | Ultra 5 225H, Ultra 7 255H, Ultra 9 285H |
